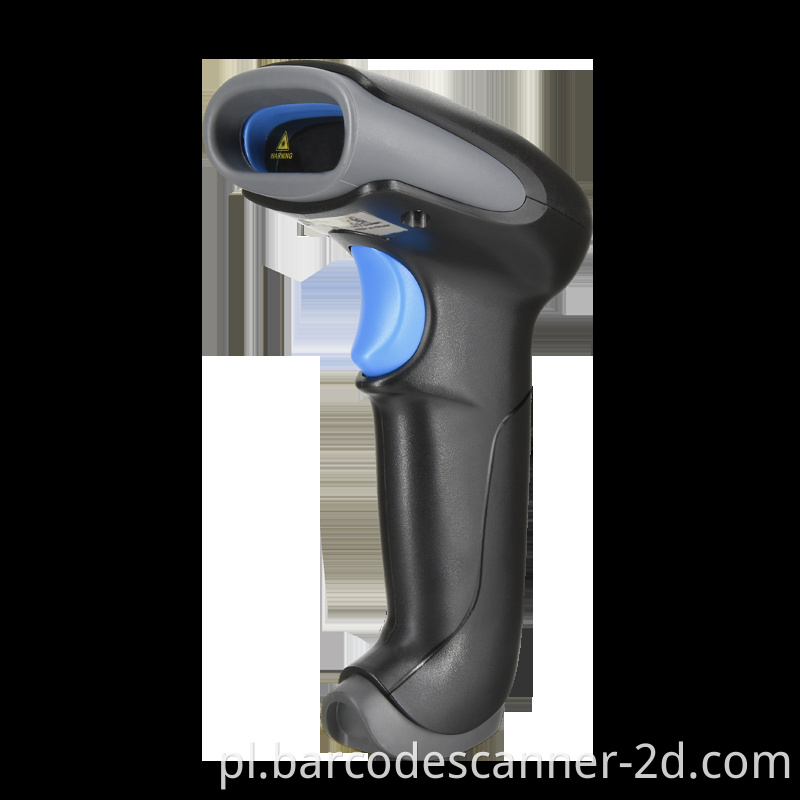

Winson 2022 Nowy produkt przewodowy 1D Laser Barcode Readers Handheld CCD Scanner Gun
1. efektywny, doskonały skaner przenośnika ;
2. Wymagany projekt, dobry skaner kodów kreskowych CMOS o dobrym zastosowaniu;
3. Upewnienie gładkiego, wygodnego modułu skanera kodów kreskowych ;
4. Support RS232/USB, odczyt kodu kreskowego płynnie moduł kodu kreskowego 1D ;
5. Skanery kodów barowych Winson obsługują wiele klawiatury: USA, Niemcy, francuski, Włochy, Hiszpanie, Turcja, Belgia, Brazylia Czech i tak dalej.
|
Better scanning performance
32-bit CPU, scanning code speed up to 120 scans per second.
Support a variety of codes

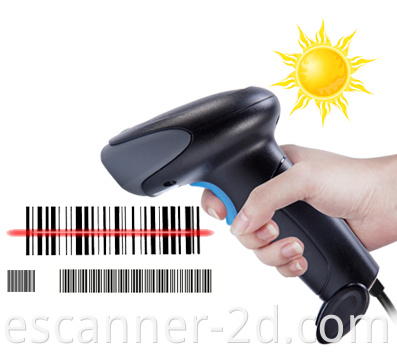

1D barcode can be read under direct sunlight, high-speed scanning.
|
|

|
|
Plug and play
Plug and play, no need to manually install the driver
(for USB HID KEYBOARD, USB VCP (Windows10
below USBVCP need to install the driver)).
|

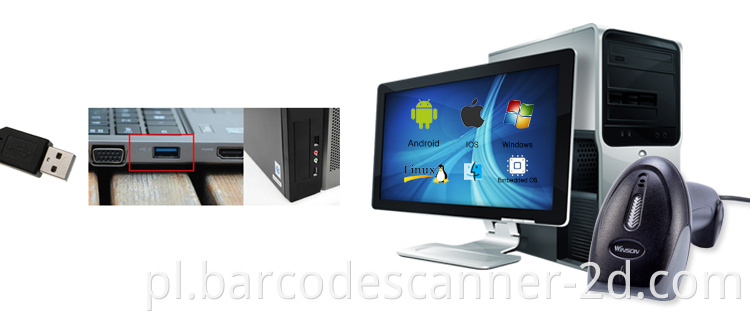

Compatibility
Compatible with the current system used by the general public, such as Windows, Android, Mac OS, IOS, Linux, and so on.
|
Szczegóły produktu
|
Electrical Characteristics
|
|
Interface Supported
|
USB HID KEYBOARD/USB VCP or RS-232
|
|
Input Voltage
|
DC 5V±5%
|
|
Current
|
Max:185mA
|
|
Performance Characteristics
|
|
Light Source
|
650nm visible laser diode
|
|
Decoding speed
|
100±20/s
|
|
Scanning Angle
|
Pitch angle:-30° to 0°,0° to +30°
|
|
|
Skew angle:-60° to 0°,0° to +60°
|
|
|
Tilt angle:-30° to 0°,0° to +30°
|
|
Min Resolution
|
1D : 4mils
|
|
Min .PCS value
|
>30%UPC/EAN 13(13mil)
|
|
Decode Capability
|
1D:EAN13,EAN8,UPC A,UPC E,ISSN, ISBN, UPC-A ,
UPC-E , CODE39 , CODE32, CODE128, UCC-EAN128, CODE93, CODE11, CODABAR, MSI, CROSS 25 CODE, CHINA POST 25 CODE, MATRIX 25CODE,INDUSTRIAL 25 CODE, GS1 DataBar Omnidirectional, GS1 DataBar Limited
|
|
Environmental Characteristics
|
|
Temperature
|
operation:0°C-50°C
|
|
|
storage:-10°C-60°C
|
|
Humidity
|
operation:20%~85% (no condensation)
|
|
|
storage:20%~95%(no condensation)
|
|
Physical Characteristics
|
|
Dimensions
|
90mm x67mm x 168mm(L*W*H)
|
|
Weight
|
130g
|
|
Indicator
|
Beeper, LED
|
|
Decoding Depth of Field
|
|
Symbology
|
Resolution
|
Barcode number
|
Barcode width
|
Nearest
|
Farthest
|
|
Code128
|
5mil
|
20
|
4.3x1.5cm
|
5cm
|
10cm
|
|
Code128
|
15mil
|
7
|
4.3x1.5cm
|
2.5cm
|
26cm
|
|
Code39
|
6.67mil
|
16
|
4.4x1.5cm
|
3cm
|
19cm
|
|
Code39
|
20mil
|
4
|
4.3x1.5cm
|
3cm
|
32cm
|
|
EAN13
|
13.34mil
|
13
|
4.2x1.5cm
|
2cm
|
24cm
|
