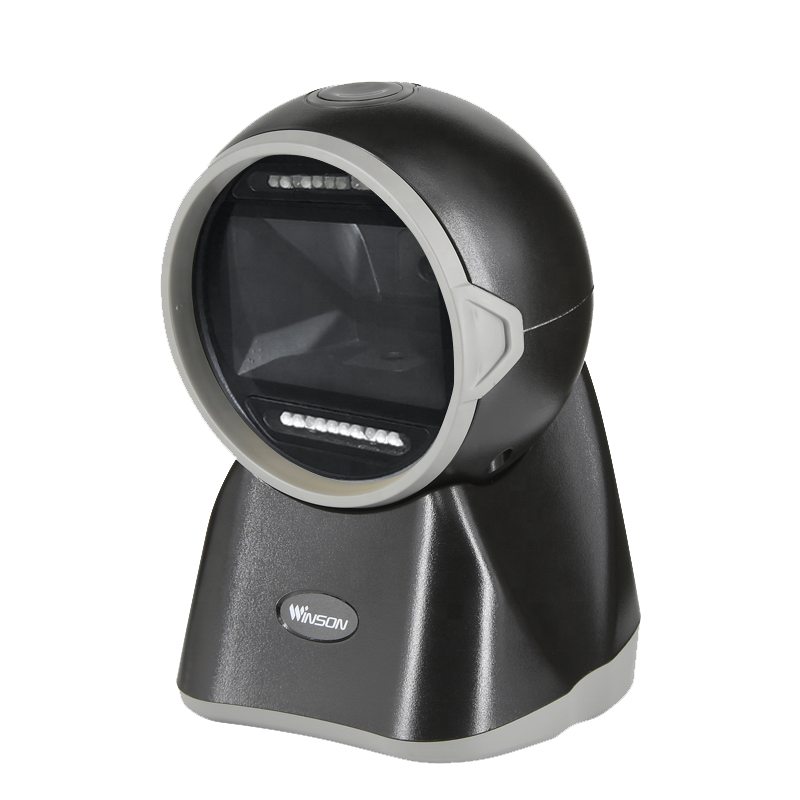

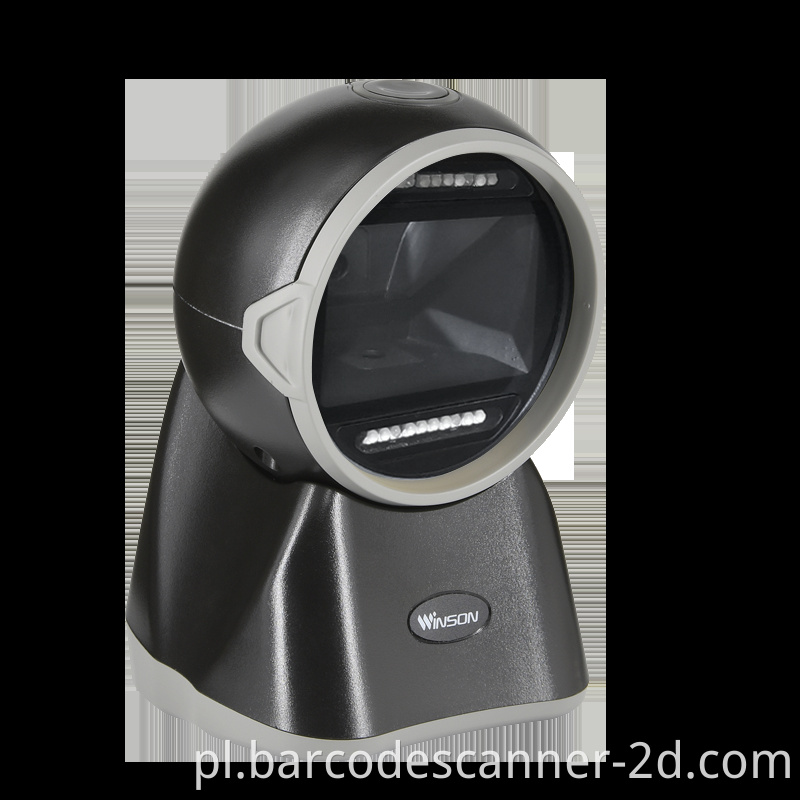

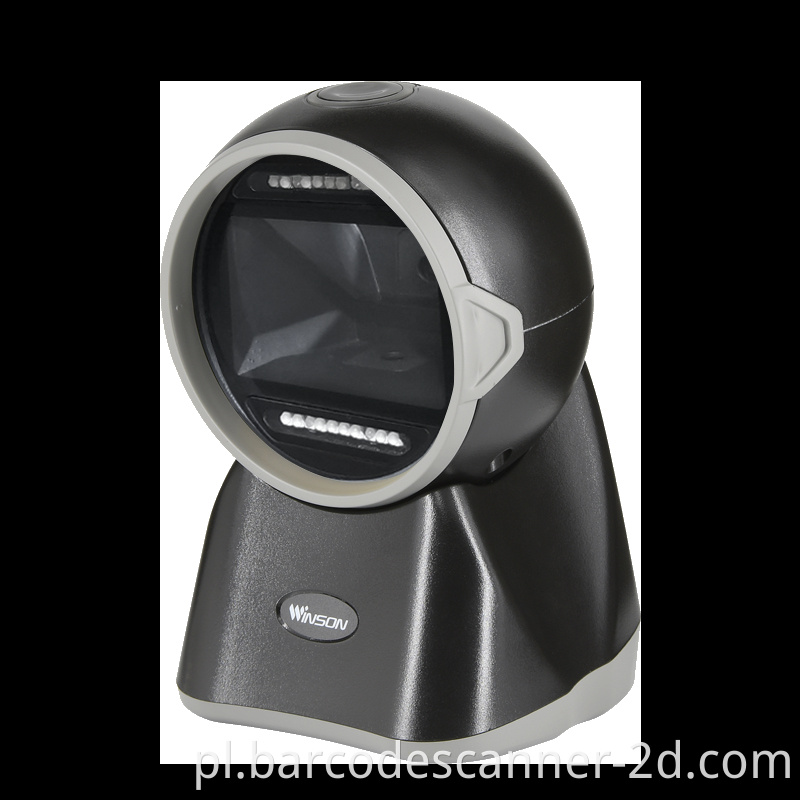

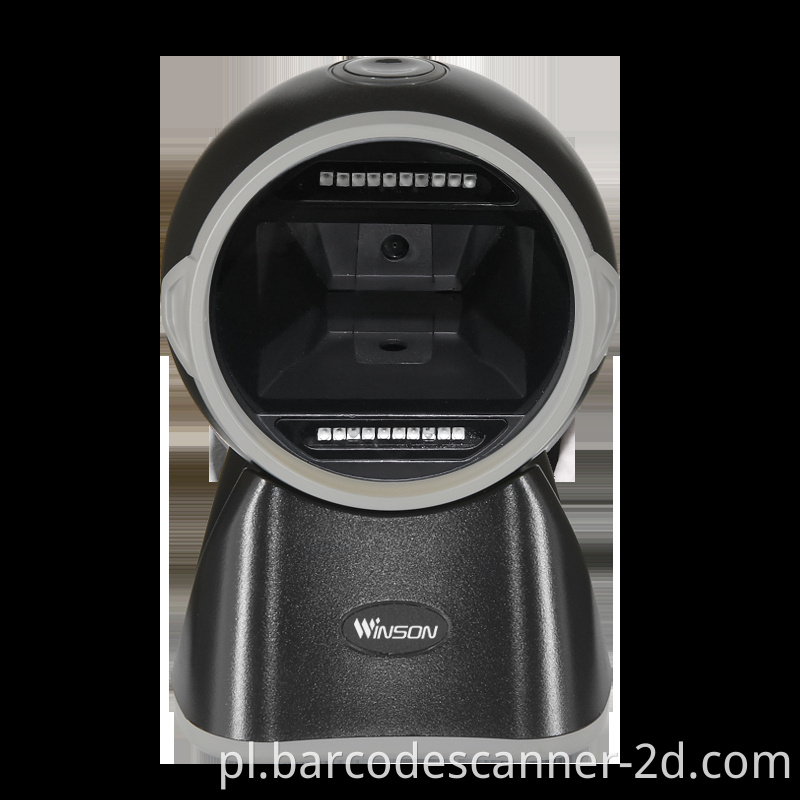

Winson WAI-6510 2D CMOS Reader Supermarket Supermarket Kod kod kreskowy SKANOWANY
Cechy
|
1.2d Handheld Barcode Scanner Quickly scan various barcodes;
|
|
2.On Counter Scanner Support reader 1d&2d paper and screen barcode;
|
|
3.Support multiple keyboard language;
|
|
4.Desktop Barcode Reader T97 Support read small high-density barcode;
|
|
5.C2 Qr Code Desktop Reader Play and pluy, no need to manual install driver;
|
|
6.Suitable for supermarkets and Retail Stores.
|
Szczegóły produktu
|
Technical Specifications
|
|
Electrical Characteristics
|
|
Interface Supported
|
RS-232/USB HID KEYBOARD/USB VCP
|
|
Input Voltage
|
DC 5V±10%
|
|
Current
|
Max:200mA
|
|
Optical Characteristics
|
|
Image Sensor
|
CMOS Array Sensor
|
|
Sensor Resolution
|
1280 X 800 Pixels
|
|
Light Source
|
RED LED
|
|
Performance Characteristics
|
|
Field of View
|
58°(H),45°(V)
|
|
Min Resolution
|
1D:0.076mm/3mil(PCS 0.9)
2D:0.152mm/7mil(PCS 0.9)
|
|
Min .PCS value
|
>30% UPC/EAN 13(13mil)
|
|
Language
|
Multiple Languages
|
|
Data Edition
|
Support for custom data output
|
|
Decode Capability
|
1D : UPC-A / UPC-E / EAN-8 / EAN-13, ISBN, Code 39, Code 93, Code 128, Code 32, Codabar, MSI Plessey, Interleaved 2 of 5, Pharmacode ,
2D : PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, DotCode
|
|
Physical Characteristics
|
|
Dimensions
|
100mm*95mm*158mm(L*W*H)
|
|
Weight
|
265g
|
|
Indicator
|
Beeper, LED
|
|
Environmental Characteristics
|
|
Temperature
|
0° to 50°C (operation)
-10° to 60°C (storage)
|
|
Humidity
|
20 - 85% (operation) ) 20 - 85% (storage)
|
|
Shock Drop Test
|
1.5m drop onto concrete surface
|
